Exploded Engine Views

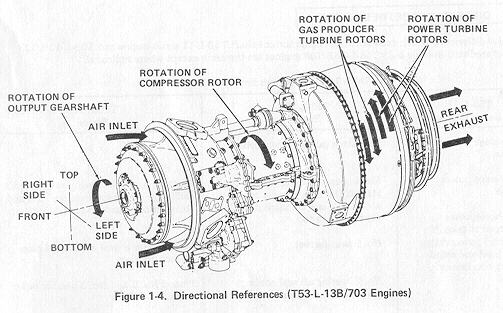

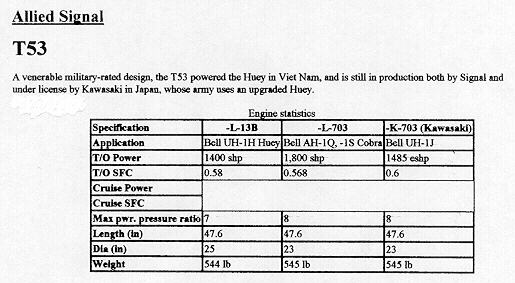

Engine Statistics Engine Directional Differences

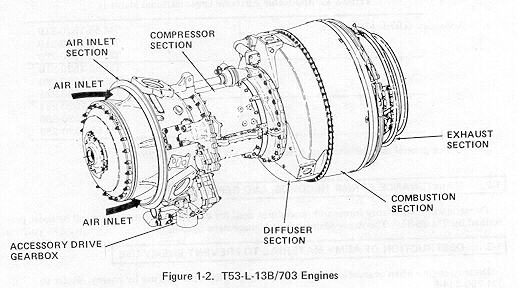

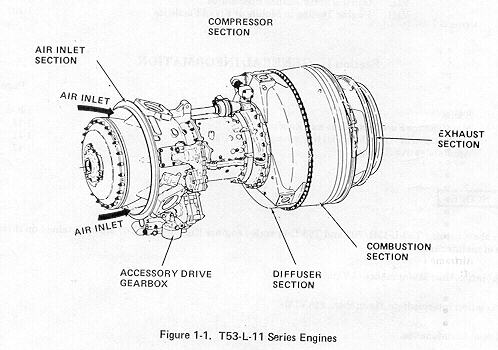

T53-L11 Series Engine T53-L13 Series Engine

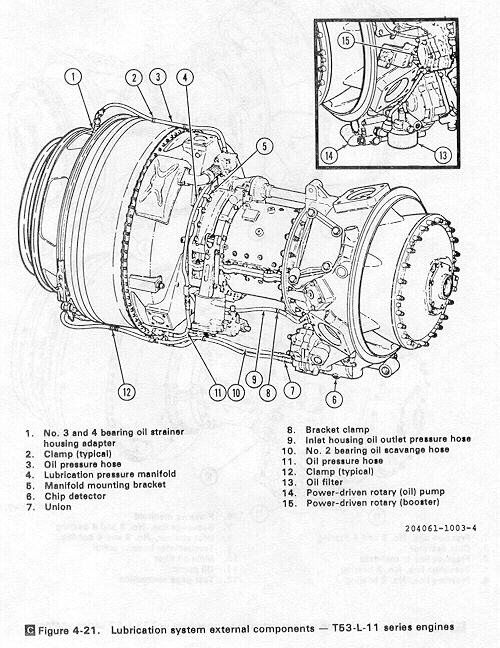

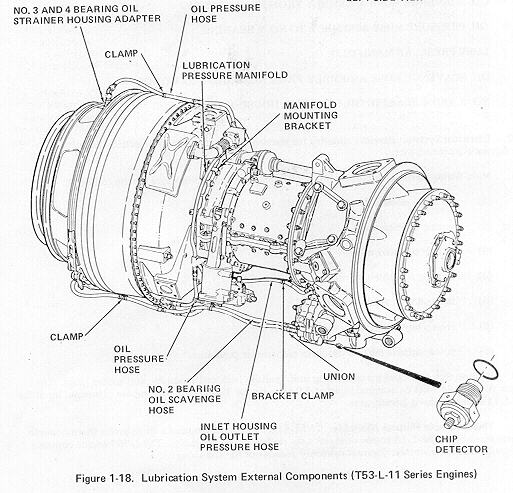

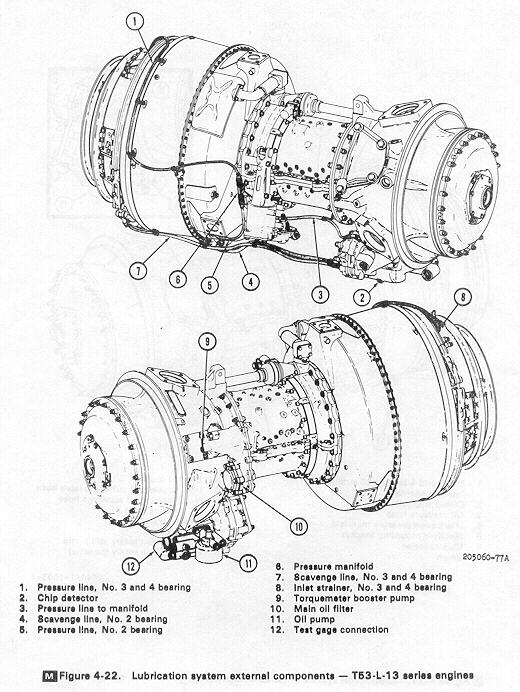

Engine Lubrication Fig.1 Engine Lubrication Fig.1

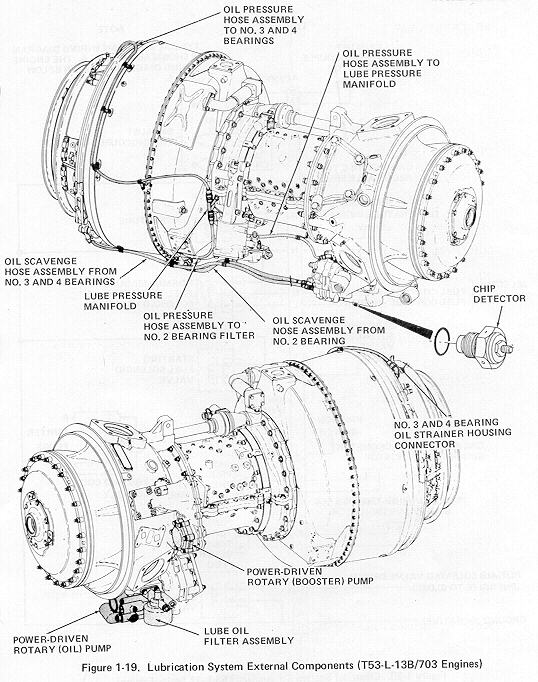

Engine Lubrication Fig.2 Engine Lubrication Fig.2
Component Location Component Location

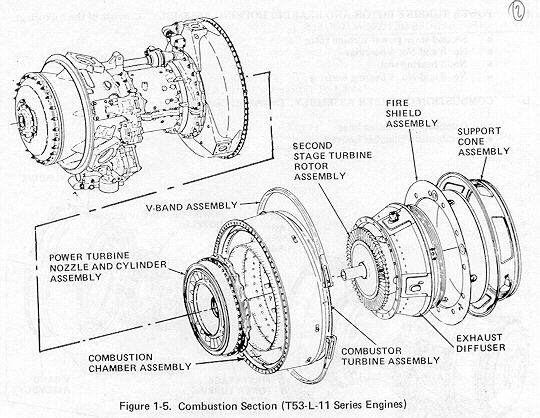

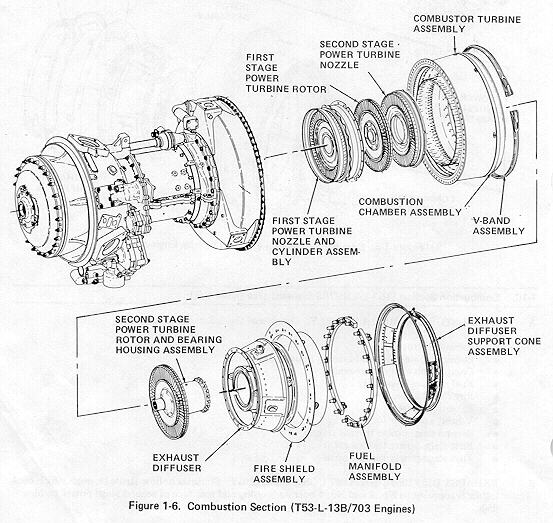

Combustion Section Combustion Section

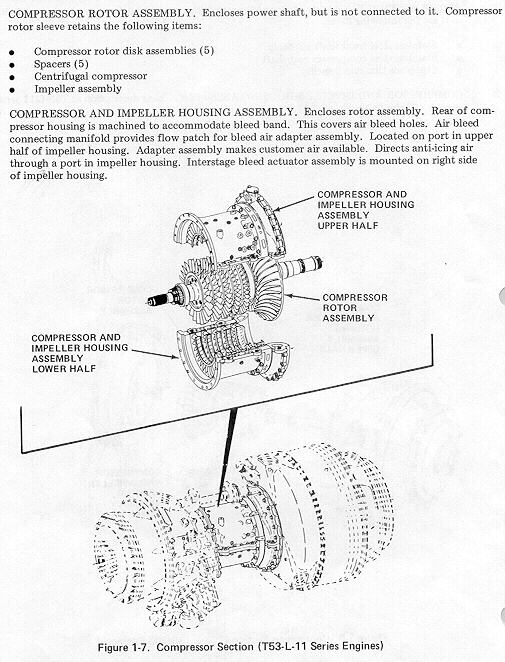

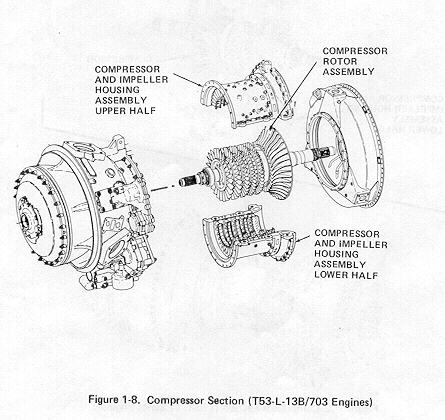

Compressor Section Compressor Section

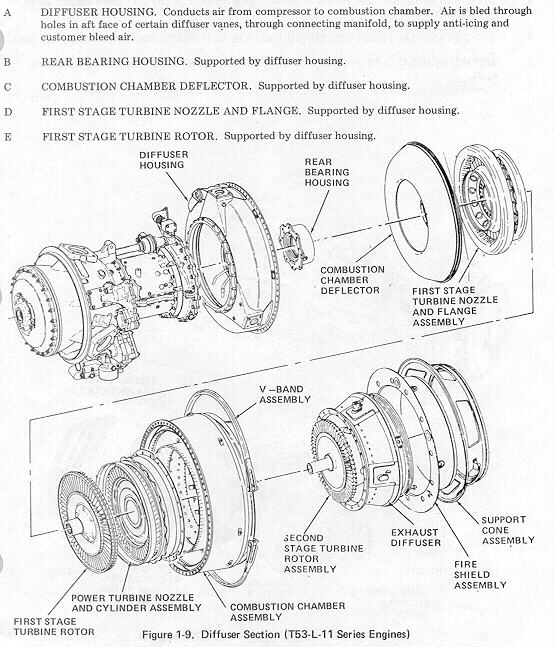

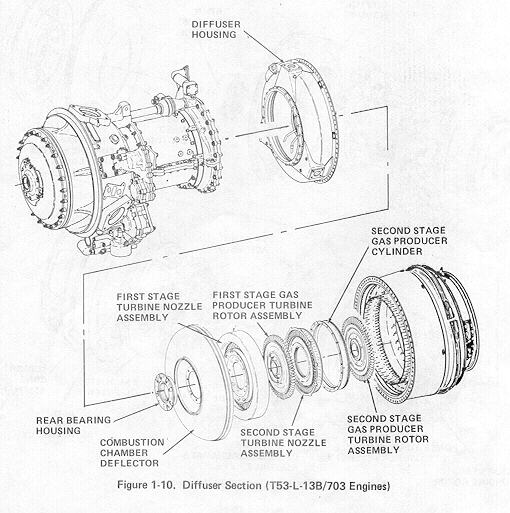

Diffuser Section Diffuser Section

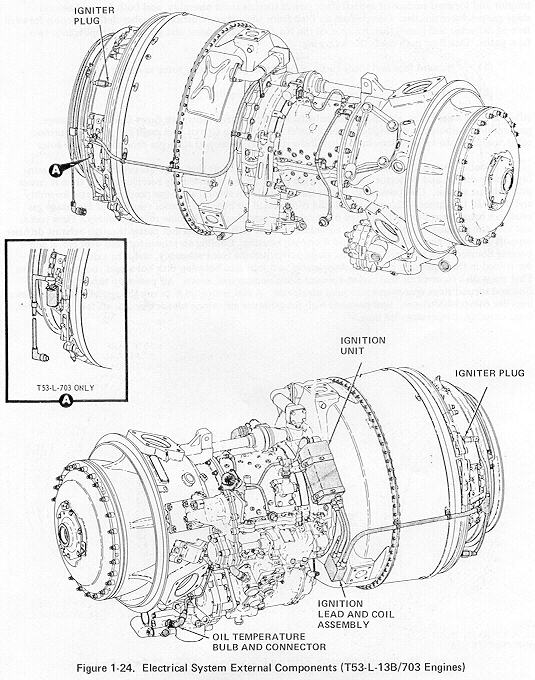

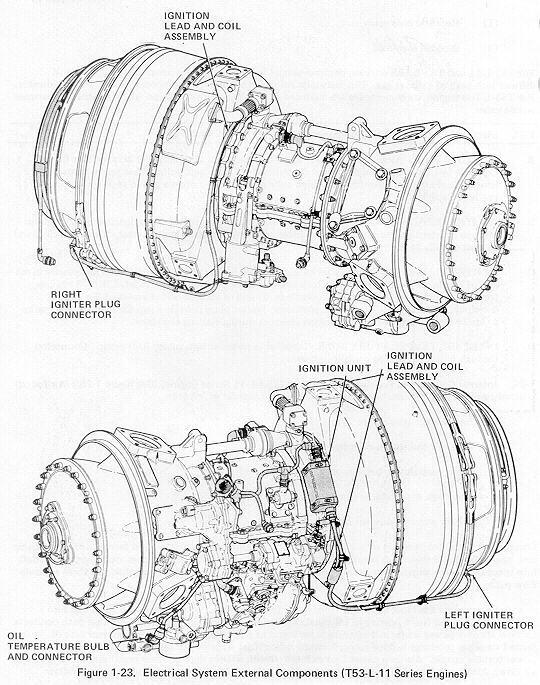

External Electrical External Electrical
