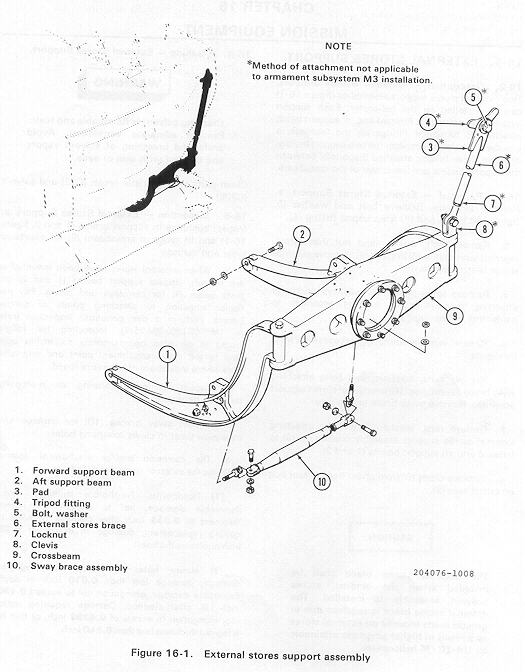

External stores support assembly

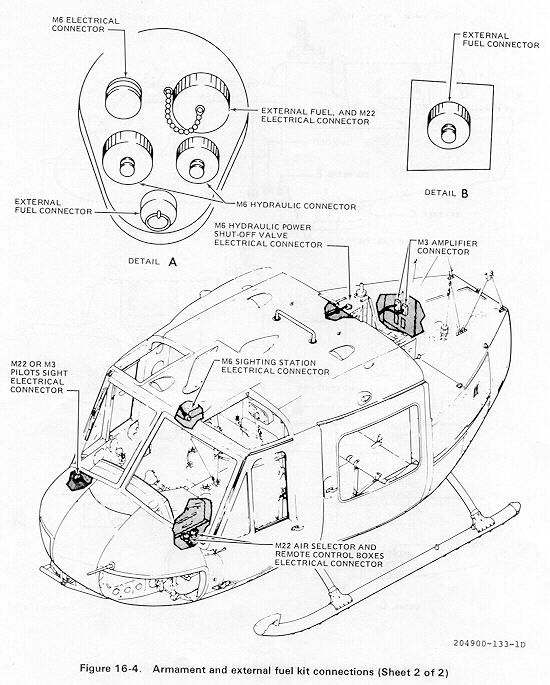

Armament and external fuel kit connections

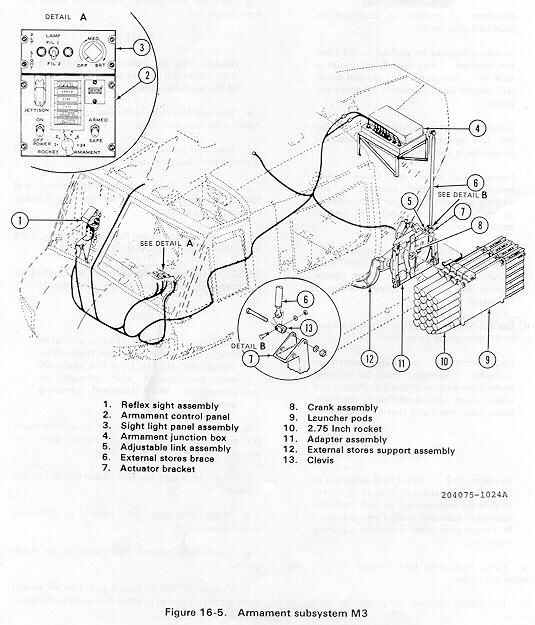

M3 armament sub-system

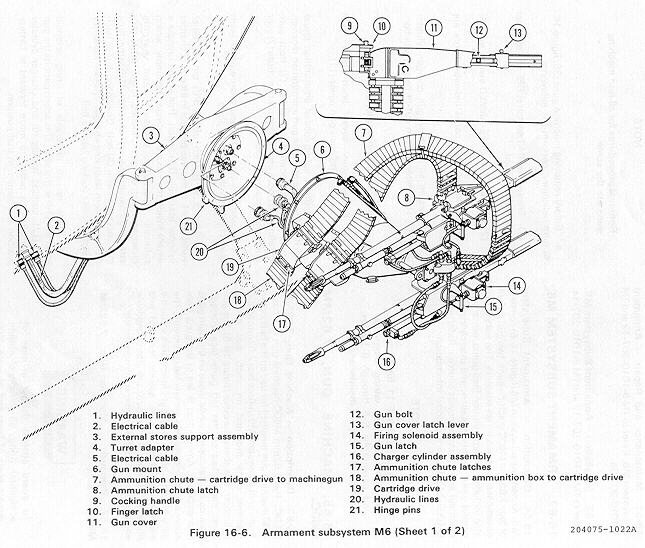

M6 armament sub-system sheet 1

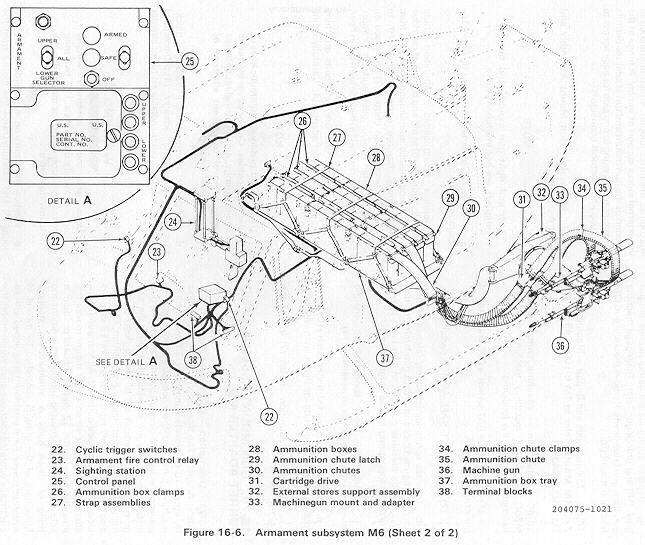

M6 armament sub-system sheet 2

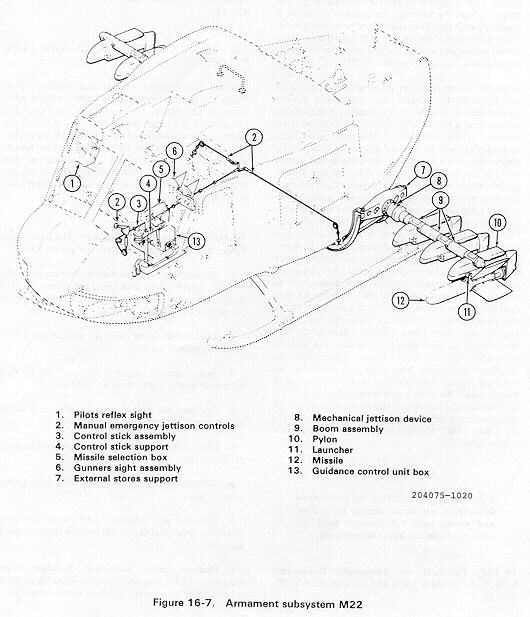

M22 armament sub-system

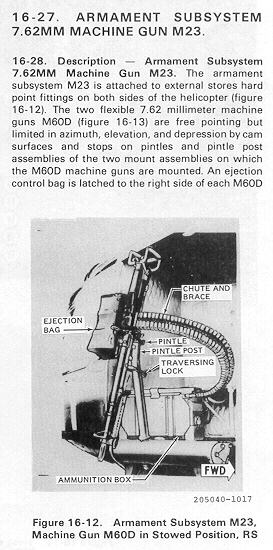

M23 armament sub-system 7.62mm machine gun

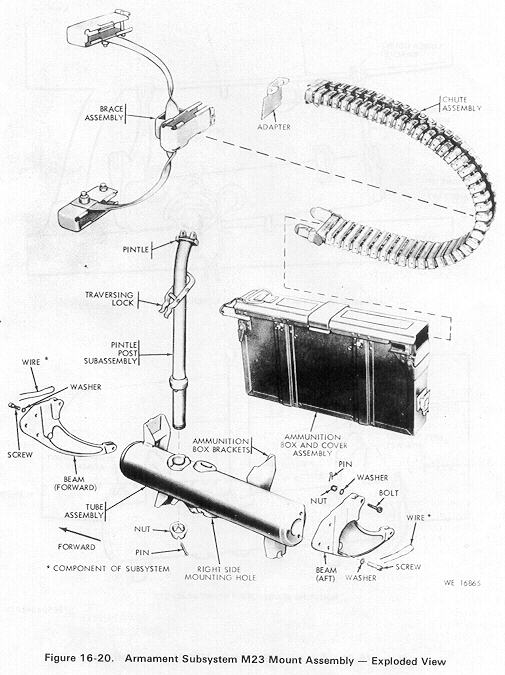

M23 mount assembly for M60D machine gun

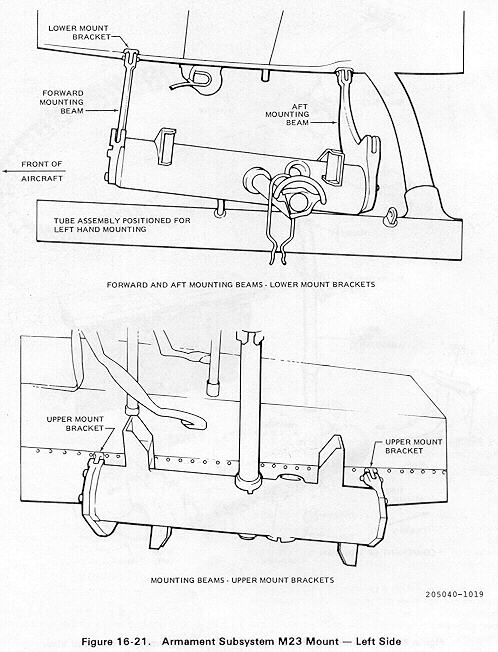

M23 mount left side

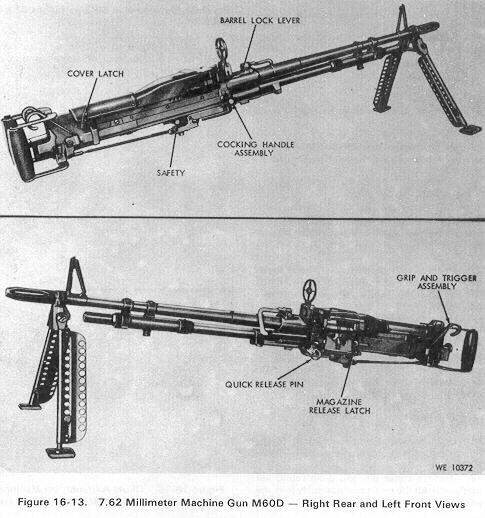

M60D 7.62mm machine gun

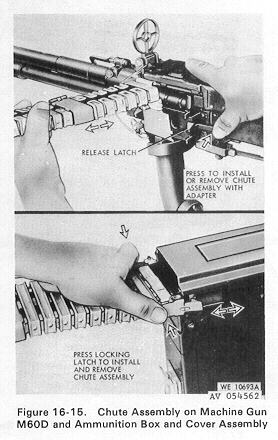

M60D chute assembly, ammunition box and cover

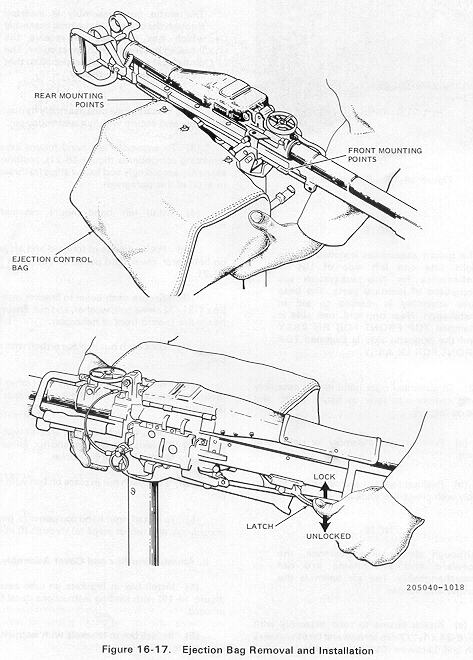

M60D ejection bag

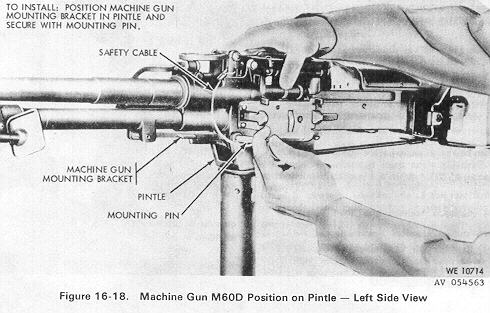

M60D machine gun position on pintel

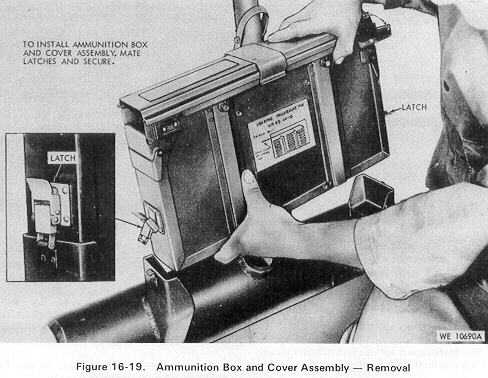

M60D ammo box and cover assembly

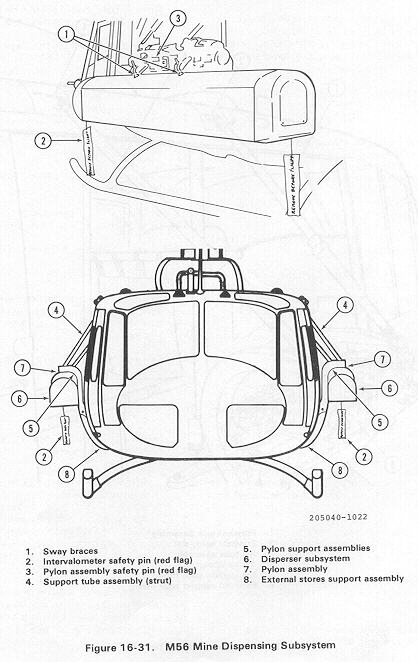

M56 mine dispensing sub-system

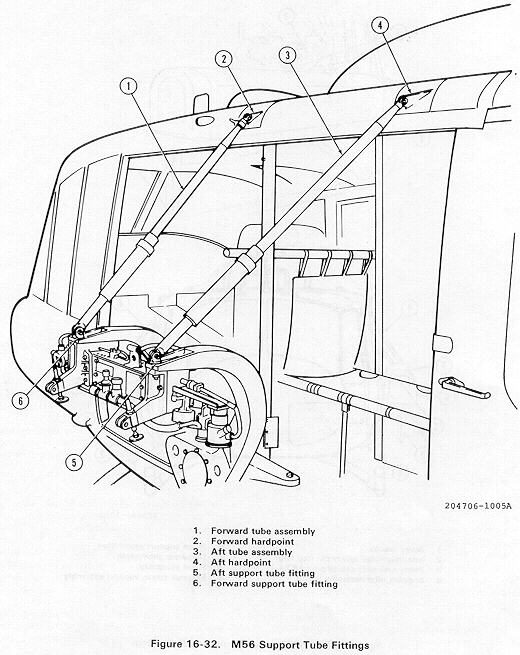

M56 support tube fittings

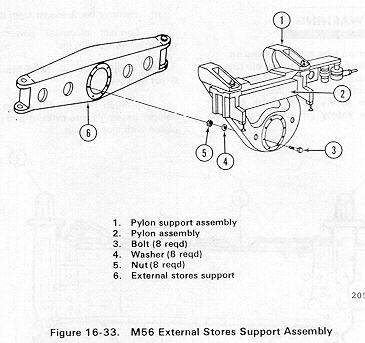

M56 external stores support assembly

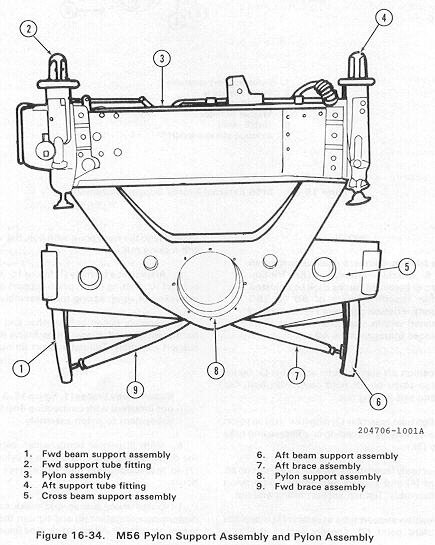

M56 pylon support assembly and pylon assembly

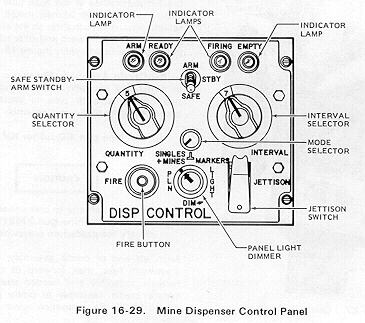

Mine dispenser control panel

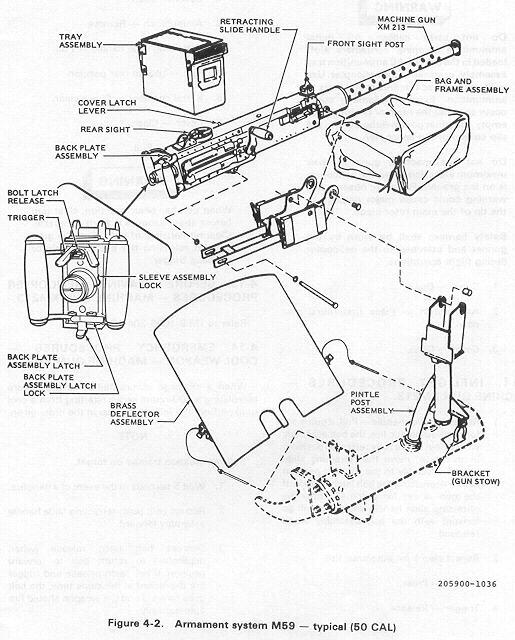

M59 armament system typical .50 caliber

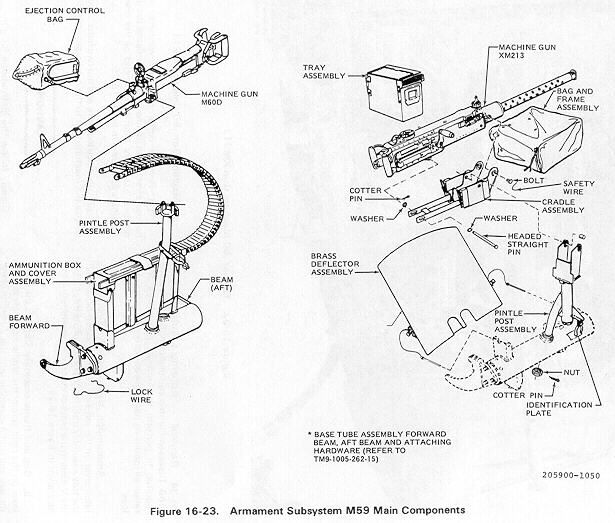

M59 armament sub-system main components

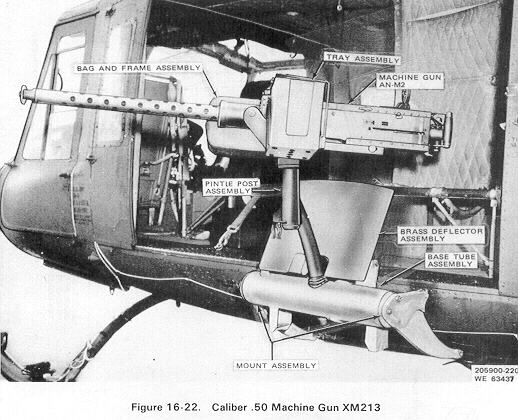

XM213 .50caliber machine gun

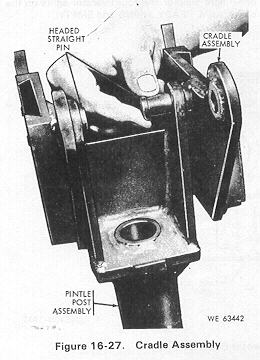

Cradle assembly for .50 caliber

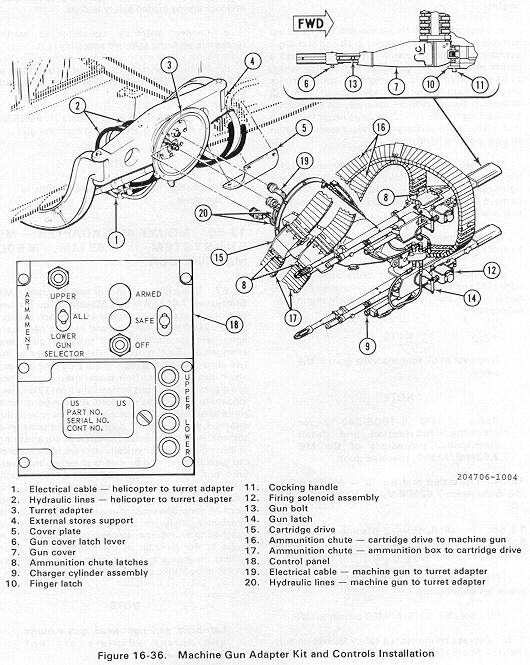

Machine gun adapter kit and controls

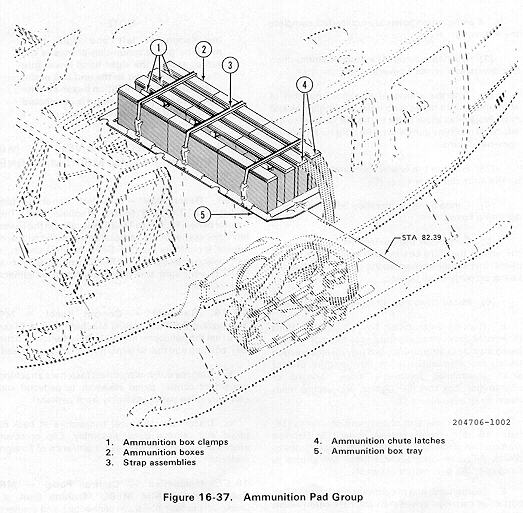

Ammunition pad group

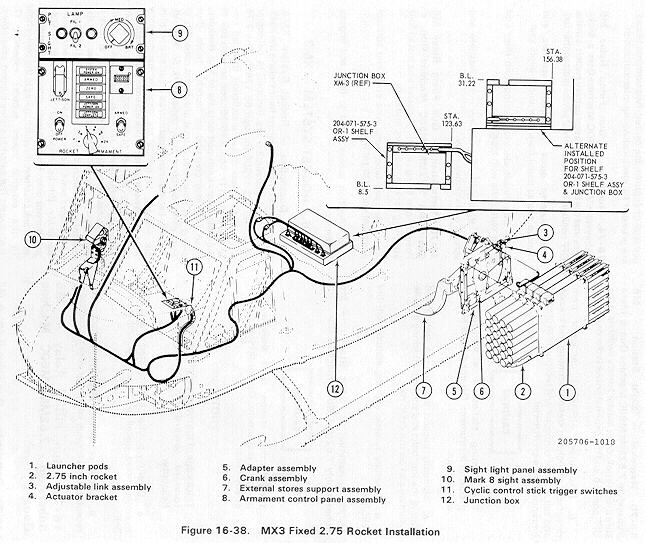

XM3 fixed 2.75 rocket system

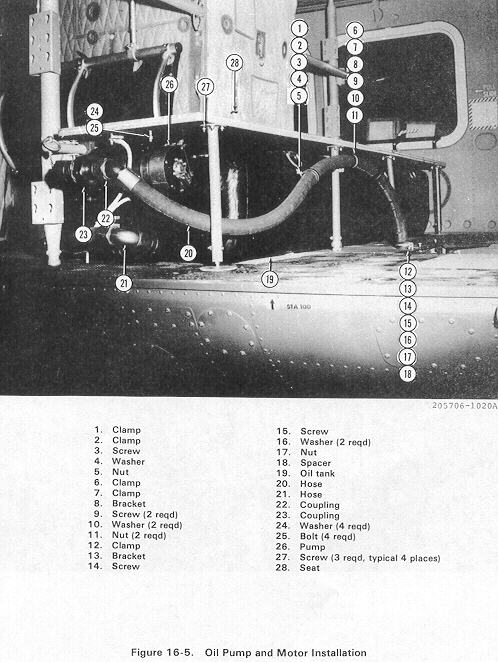

Smoke generator oil pump and motor assembly

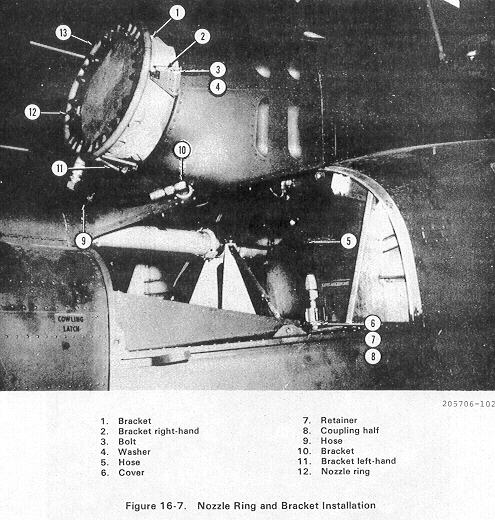

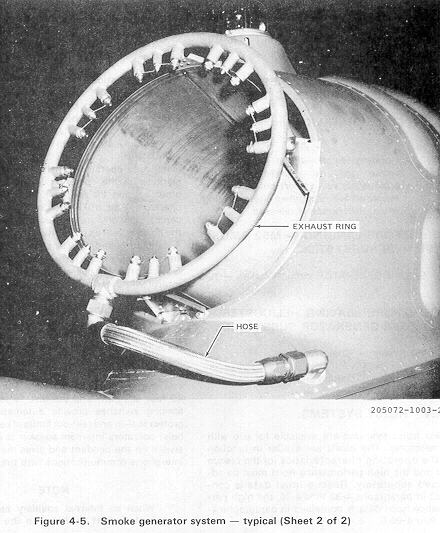

Smoke generator nozzle ring and bracket
Smoke generator nozzle ring
